SONTUOEC brand C60 Construction Design STM9-63 series MCB Circuit Breaker 6KA Working Reliability

Name: SONTUOEC brand C60 Construction Design STM963 series MCB Circuit Breaker 6KA Working Reliability
Brand: SONTUOEC
Price: 1 USD

Brand Name : SONTUOEC

Model Number : STM9-63

Certification : CE, CB, SAA,ISO9001

Place of Origin : China

MOQ : 24000PCS

Price : Negotiable

Supply Ability : 10000PCS/DAY

Delivery Time : 20DAYS

Packaging Details : 240PCS/CTN

Ue : 230/415V

in : 1,2,4,40,50,63A

Breaking Capacity : ,6KA

Standard : IEC60898

Credential : CE,CB, ISO9001

Texture : PA66

Contact Now

SONTUOEC Brand C60 Construction Design STM9-63 Series MCB Circuit Breaker White Plastic Texture 6KA High Working Reliability

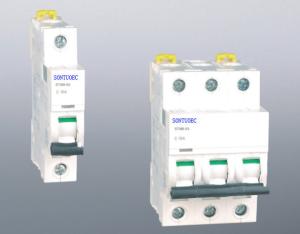

STM9-63 Miniature Circuit Breaker

STM9-63 series high breaking capacity mini circuit breaker is used in AC50/60Hz, rated voltage of 230V

3, 4 poles 400V, rated current to 63A for overload and short-circuit protection as well as for unfrequented switching under normal case.It is used extensively for industry, commercial and household.This product conform to IEC60898 standard.

Model	STM9-63 MCB
Standard	IEC60898
Pole	1P,2P,3P,4P
Rated Short-circuit capacity(Icn)	3KA,4.5KA,6KA
Rated Current(In)	1,2,4,6,10,16,20,25,32,40,50,63A
Rated Voltage(Un)	AC230(240)/400(415)V
Rated Frequency	50/60HZ
Tripping curve	B,C,D
Magnetic releases	B curve: between 3and 5 In
	C curve: between 5and 10In
	D curve: between 10 and 14In
Electro-mechanical endurance	over 6000 cycles

	Standard		IEC/EN 60898-1
Electrical features	Rated current In	A	1,2,4,6,10,16,20,25,32,40,50,63
	Poles	P	1,2,3,4
	Rated voltage Ue	V	AC 240/415
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	45,006,000
	Rated impulse withstand voltage(1.2/50)Uimp	V	4000
	Dielectric test voltage at ind.Freq.for 1 min	Kv	2
	Pollution degree		2
	Thermo-magnetic release characteristic		B,C,D
Mechanical features	Electrical life	t	4000
	Mechanical life	t	10000
	Protection degree		IP20
	Reference temperature for setting of thermal element	℃	30
	Ambient temperature (with daily average ≤35℃)	℃	-5~+40(Special application please refer to temperature compensation correction)
	Storage temperature	℃	-25~+70
Installation	Terminal connection type		Cable/Pin-type busbar
	Terminal size top/bottom for cable	mm²	25
	Terminal size top/bottom for cable	AWG	18-3
	Therminal size top/bottom for busbar	mm²	25
	Therminal size top/bottom for busbar	AWG	18-3
	Tightening torque	N^*m	2
	Tightening torque	In-lbs	18
	Mounting		on DIN rail EN 60715(35mm)by means of fast clip device
	Connection		From top and bottom

General
1. Application:For protecting cables and equipments against overload and short circuit.
2. General rules for choosing MCB.

Technical data of the network at the point considered

The earthing systems,short-circuit current at the circuit breaker installation point,which must always be less than the breaking capacity of this device,network normal voltage.

There are 3 curvve characteristics for magnetic operation:

B curve (3-5In) protection and control of the circuits against length cables in TN and IT systems.
C curve (5-10In) protection and control of the circuits against overloads and short-circuits; protection for resistive and inductive loads with low inrush current.
D curve (10-50In) protection and control of the circuits against overloads and short-circuits; protection for circuits which supply loads with high inrush current at the circuit closing (LV/LV transformers,breakdown lamps.)

FAQ
Q: If I'm interested in your MCB when I can receive your quotation and detail information after send the enquiry?
All your enquiry will be replied in 24hours.

Q: Your MCB seems perfect but what's the difference between you and other suppliers? Because I find some cheaper price from others!
Our teams have more than 20years experience in the field of Circuit Breaker, We pay more attention for the quality, the price decide the quality; The quality is our life !

Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
Q: Do you have any of chat tools ? So that we can communicate with each other more convience ?

Yes, our Wechat/ WhatsApp: 008613868610160; Skype: sanny888345 ; QQ:184842077
Q: I need your price list of all your products, do you have a price list?
We do not have a price list of all of our products. Because we have so many items, and it is impossible to mark all of their price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products, please feel free to contact us. We will send offer to you soon!
