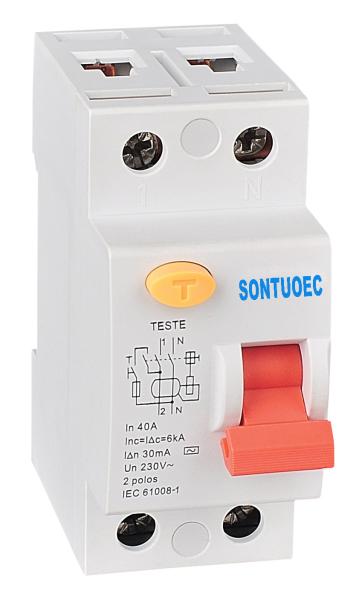

IEC 61008 Plastic PA66 2P 4P RCCB Circuit Breaker

Name: IEC 61008 Plastic PA66 2P 4P RCCB Circuit Breaker
Brand: SONTUOEC, WZSTEC
Price: 1 USD

Quality IEC 61008 Plastic PA66 2P 4P RCCB Circuit Breaker wholesale

Brand Name : SONTUOEC, WZSTEC

Model Number : F360

Certification : CE, SAA, Semko ,ISO9001

Place of Origin : China

MOQ : 2000PCS

Price : Negotiable

Supply Ability : 5000PCS/DAY

Delivery Time : 15DAYS

Packaging Details : 100pcs/ctns

Standard : IEC 61008

Color : White

Credential : CE

Pole : 2P ,4P

Texture : Plastic PA66

Install : Din Rail

Contact Now

IEC 61008 ELCB, RCCB, RCD 2P,4P F360 series Residual Current Circuit Breaker electrical or magnetic type A or AC model

F360 series residual current circuit breaker is in conformity with the standards of IEC61008.It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunkline.Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.It can be used in circuits up to single phase 240V,three phase 415V,50 or 60Hz.

Product Description

This series Residual Current Circuit Breaker is applicable to electric circuits with rated voltage 230/400V AC, frequency 50/60Hz and rated current up to 80Amp.

1. Rated sensitivity up to 30mA could be used as supplementary protecting device in case other protecting device fails its protection against electric shock.
2. This series RCCB designed for household installation and other similar application, is for non-professional operation, and no maintenance is required.
3. This series RCCB provides no protection against electric shock resulted from direct contacts of both protected lines,or leakage current between these two lines.
4. Particular devices such as surge protective devices,surge arrester etc are recommended to install at upstream line to RCCB as precaution against potential surge voltage and current occurring at its power input side.
5. Satisfying conditions and applications as mentioned above, RCCB with °∞ON-OFF°± indicating device is considered suitable for isolation function.

Technical Data

1. Provides protection against earth fault/leakage current and function of isolation.

2. High short-circuit current withstand capacity.

3. Applicable to terminal and pin/fork type busbar connection.

4. Equipped with finger protected connection terminals.

5. Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity.

6. Independent of power supply and line voltage, and free from external interference, voltage fluctuation.

Item	RCCB , RCD
Model	A,AC(Electro-magnetic type,electronic type)
Pole	2P,4P
Rated making and breaking capacity:630A	Rated voltage: 240/415V AC
Rated frequency:	50/60Hz
Rated residual operating current	10mA 30ma 100A 300mA
Tripping duration	instantaneous tripping 0.1s
Electro-mechanical endurance	More than 4000 cycles
Standard	IEC CE CB ISO9001 TUV
Rated current(A)	16,25,32,40,63,80,100
Installation	35MM DIN RAIL

Residual tripping characteristics

Type AC

For which tripping is ensured for residual sinusoidal alternating currents, whether suddenly applied or slowly rising.

Type A

For which tripping is ensured for residual sinusoidal alternating currents and residual pulsating direct currents whether suddenly applied or slowly rising

Type S

For selectivity, with time-Delay
