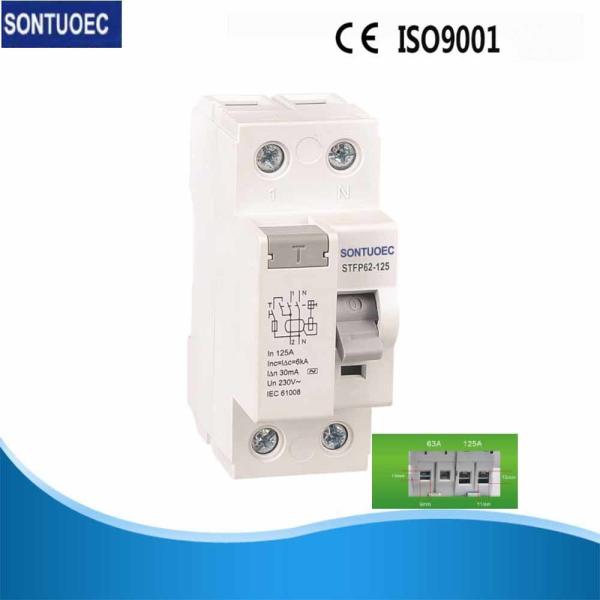

SONTUOEC STFP60 series RCCB 30mA Single Phase 2Pole 100A/30mA factory price ELCB Earth Leakage Circuit Breaker 35mm width connection screw hole
General
STFP60 series earth leakage circuit breaker is suitable to the circuit of AC50/60Hz.rated voltage 230V for 2 poles and 400V for 4 poles, and rated current up to 125A.when people come across the electric shock or the leakage current of the electrical network exceeds the fixed value, this product can cut off the fault current in short period so as to protect person and the equipments, It also can be used in the infrequent starting of the circuit and motors.
The circuit breaker is suitable to industry, commerce, high-rise building, household and other kinds of places.
This product meets the standard of IEC/EN61008-1.
It has the following features:
In complicance with IEC/EN61008-1
Bilateral busbar wiring capabilities to adapt to the wider use of premises.
With functions of fault indicator.
Maximum connecting ability of 35mm2,wiring torque 3.5N *m, applicable to a variety of installing
equipments, wiring stronger.
Protection class:IP20

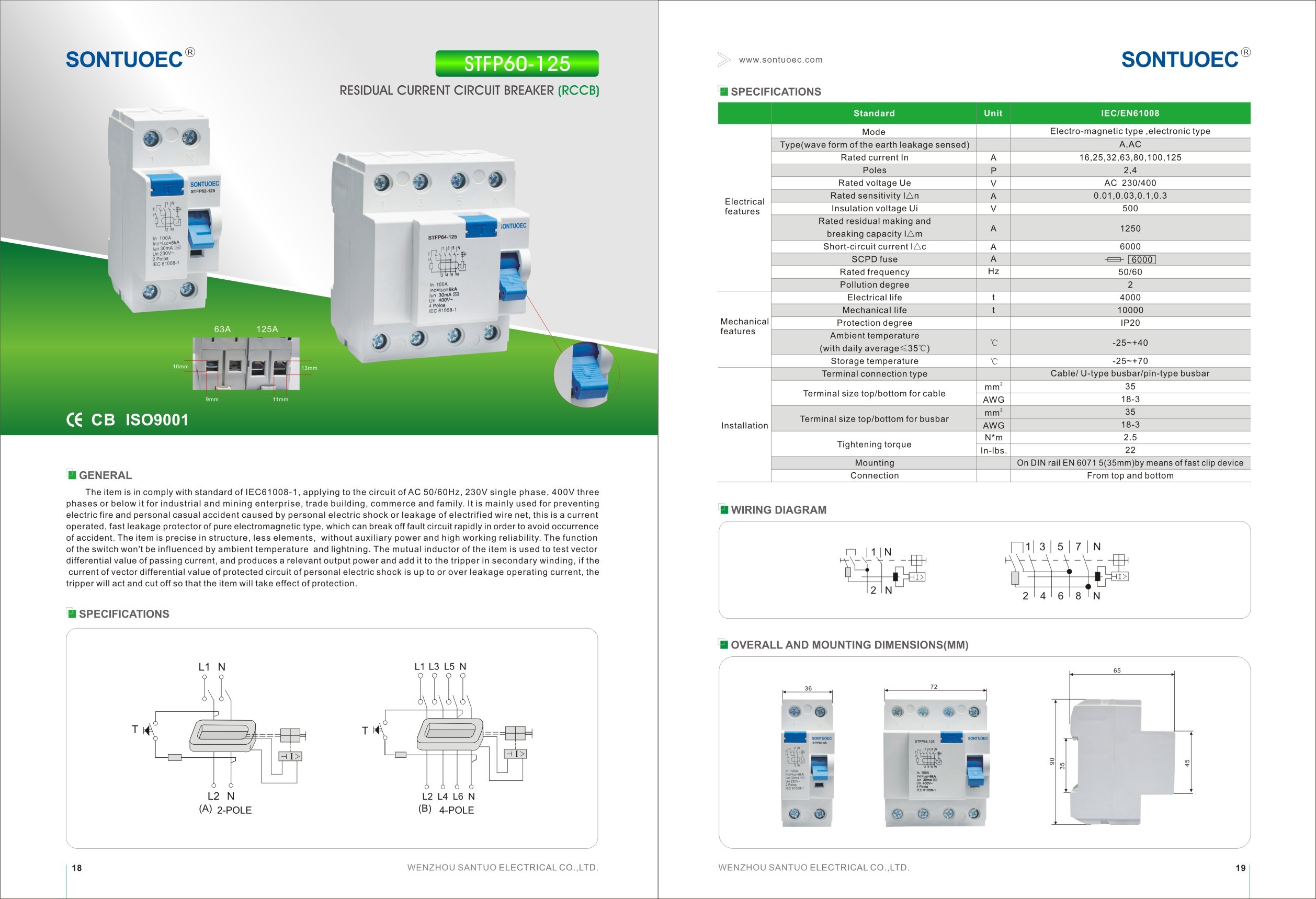

| | Residual Current Circuit Breaker RCCB |
Frame rated current(A) Inm | |
| Rated residual currents, I^n (mA) | 30,100,300,500 |
| | |
Rated impulse withstand voltage Uimp(kV) | |
Rated run short-circuit breaking capacity(kA) Ics | |
Rated ultimate breaking capacity(kA) Icn | |
Rated residual making and breaking capacity(A) I△m | |
Rated residual current Fastest breaking time | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
Maximum wiring capacity(nm²) | |
| | |
| | |
| | |
RCCBs are further divided into types depending on the operating function:
Type S: For selectivity, with time-relay.
Type AC: For which tripping is ensured for residual sinusoidal alternation currents, whether suddenly applied or slowly rising.
Type A :For which tripping is ensured for residual sinusoidal alternating currents and residual pulsation direct currents, whether suddenly applied or slowly or slowly rising.
Tripping sensitivity data:
RCCB with a rated residual current of maximum 30mA are used for personnel, material and fire protection, as well as for protection against direct contact.
RCCB with a rated residual current of maximum 30mA are used as preventative fire protection in case of insulation faults.
