NC-125 DC Type 10KA Miniature Circuit Breaker 2P 125A Din Installation Anti Impact

Product Categories
WENZHOU SANTUO ELECTRICAL CO.,LTD.
Contact Now

NC-125 DC Type 10KA Miniature Circuit Breaker 2P 125A Din Installation Anti Impact

Brand Name : SONTUOEC

Model Number : DZ47-100

Certification : CE

Place of Origin : China

MOQ : 5000PCS

Price : Negotiable

Supply Ability : 10000PCS/DAY

Delivery Time : 20DAYS

Packaging Details : 120PCS/CTN

in : 63,80,100,125 A

Standard : IEC60947.2

Pole : 4P

Type : MCB

Install : Din Rail

Max Rated Current : 125A

Contact Now

High breaking 10KA NC-100 NC-125 Miniature Circuit Breaker 2P 100A DZ47-100 MCB AC and DC type

General


DZ47-125 (NC-125) series high breaking miniature circuit breaker is used in lighting and motor protection system with protections of short circuit and over load. It mainly has the features of elegant and small, weight light, performance good and reliable, breaking capacity high, trip quickly, DIN installation and the material of shell and parts is high flameproof and anti-impact plastic ,life long. It is mainly applied in the system of 50/60Hz,single pole 230V,2,3,4 poles for 400V as over load, short circuit protection. And under voltage release, shunt release etc. And it also can be used in the isolation switch as the under voltage protection and remote distance breaking. It conforms to IEC60947-2,GB14048.2

NC-125 DC Type 10KA Miniature Circuit Breaker 2P 125A Din Installation Anti Impact

Technical Data

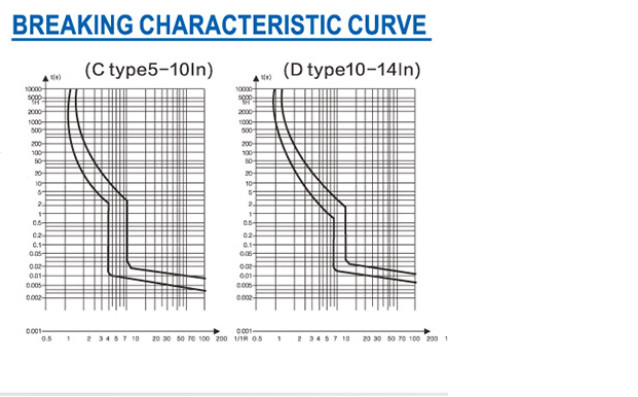

Type
C: Lighting power distribution protection
D: Motive industry power distribution protection
Model AC , DC
Frequency
AC 50Hz/60Hz
Breaking capacity
10kA
Dielectric test voltage at ind.Freq for 1min
2.5kA
Rated current
63A, 80A, 100A, 125A (1P,2P,3P,4P)
Rated voltage
AC 230/400V
Electrical life
1500times
Mechanical life
10000times

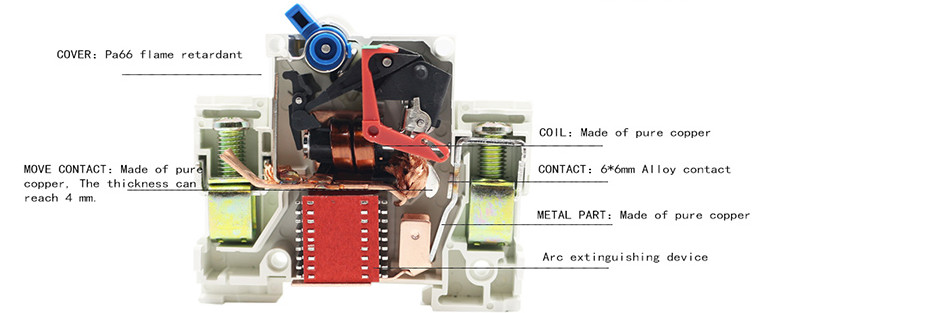

Materials
High flame-retardant and impact resistant plastic materials
Terminal connection type
Cable/Pin-type busbar

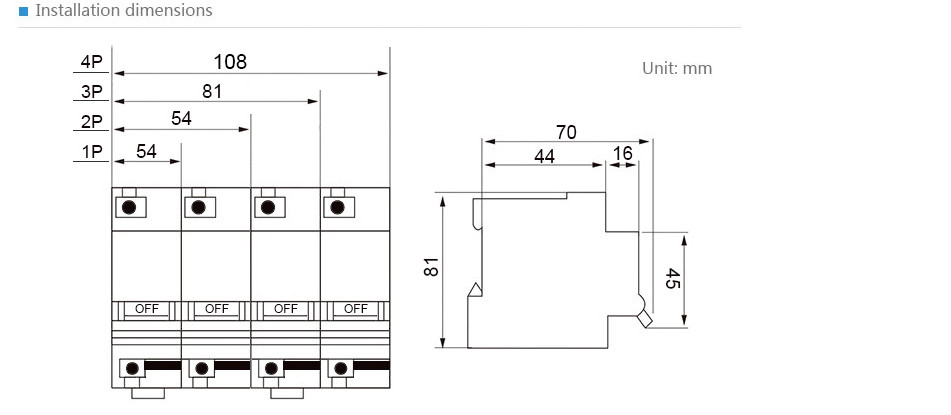

Mounting
On din rail
Connection
From top and bottom

NC-125 DC Type 10KA Miniature Circuit Breaker 2P 125A Din Installation Anti Impact

NC-125 DC Type 10KA Miniature Circuit Breaker 2P 125A Din Installation Anti ImpactNC-125 DC Type 10KA Miniature Circuit Breaker 2P 125A Din Installation Anti Impact

Our service:

1.Reply inquiry within 8 hours.

2.Please kindly inform us which items and specification and relative request you are interested in ,the reasonable price will be provided to you upon receipt of your new inquiry details.

3.Our team have more than 20years' experience.

4.Warranty 18months.

5.Welcome to visit our manufactory and work on technology communication.
