ST4L364 4 Pole RCCB Circuit Breaker , 6KA Automotive Circuit Breaker

Product Categories
WENZHOU SANTUO ELECTRICAL CO.,LTD.
Contact Now

ST4L364 4 Pole RCCB Circuit Breaker , 6KA Automotive Circuit Breaker

Brand Name : SONTUOEC, WZSTEC

Model Number : ST4L364

Certification : CE, SAA, Semko ,ISO9001

Place of Origin : China

MOQ : 2000PCS

Price : Negotiable

Supply Ability : 5000PCS/DAY

Packaging Details : 100pcs/ctns

Delivery Time : 15DAYS

Type : RCCB

Ue : 230/400V

Color : White

Install : Din Rail

Texture : Plastic

Credential : CE

Contact Now

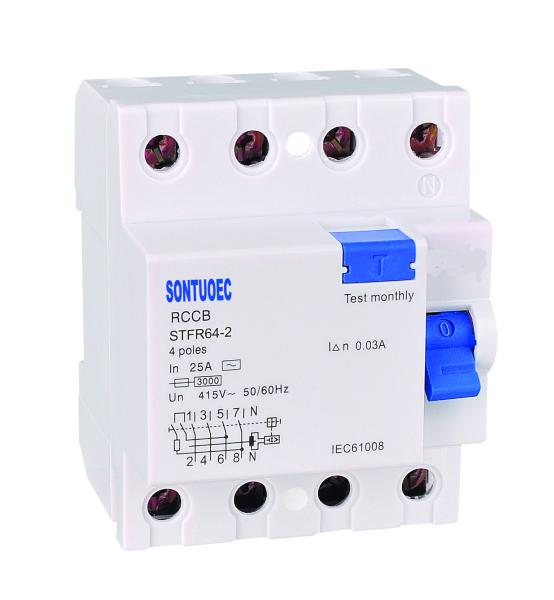

ST4L364 4P ( RCCB )Residual Current Circuit Breaker​

The Residual Current Circuit breaker RCCBs are the safest device to detect and trip against electrical leakage currents, thus ensuring protection against electric shock caused by indirect contacts. These devices must be used in series with an MCB or fuse which protects them from the potentially damaging thermal and dynamic stresses of any over currents. They also act as the main disconnecting switches upstream of any derived MCBs (e.g. domestic consumer unit)

ST4L364 residual current circuit breaker is in conformity with the standards of IEC61008.It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunkline.Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.It can be used in circuits up to single phase 240V,three phase 415V,50 or 60Hz.

Model Electronic type/magnetic type
Residual Current characterstics
A,AC
Pole No
 2P/4P
Rated Current(A)
16A,25A,32A,40A,63A
Rated Voltage(V)
240/415V
Rated residual operating current
10ma,30ma,100ma,300ma,500ma
Rated conditional residual short circuit current
 6KA
Electro-machanical endurance
over 4000 cycles

Our Services:

1. Competitive price
2. Continuance Service and support
3. Good-after service
4. Quality Reliability and Long Product Life.
