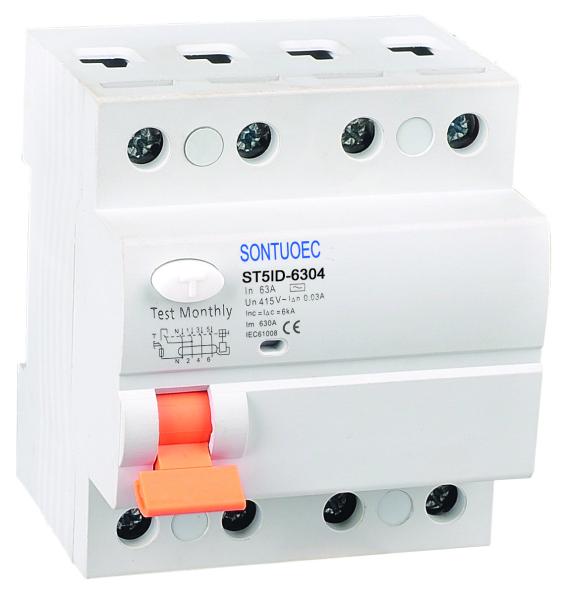

Residual-Current Circuit Breaker (RCCB), Is A Device That Instantly Breaks An Electric Circuit To Prevent Serious Harm From An Ongoing Electric Shock. Injury May Still Occur In Some Cases, For Example If A Human Falls After Receiving A Shock.
This residual current circuit breaker is in conformity with the standards of IEC61008.It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunkline.Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.It can be used in circuits up to single phase 240V,three phase 415V,50 or 60Hz.
Product Over View:
1. Provide protection against earth fault/leakage current and function of isolation
2. High short-circuit current withstand capacity
3. Applicable to terminal and pin/fork type busbar connection
4. Equipped with finger protected connection terminals
5. Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
6. Independent of power supply and line voltage, and free from external interference, voltage fluctuation.
Specifications
| Model | Electronic type/magnetic type
|
Residual Current characterstics
| A AC |
Pole No
| 2P/4P |
Rated Current(A)
| 16A,20A,25A,32A,40A,63A
|
Rated Voltage(V)
| 240/415V
|
Rated residual operating current
| 10ma,30ma,100ma,300ma,500ma
|
Rated conditional residual short circuit current
| 6KA |
Electro-machanical endurance
| over 4000 cycles |
| Sandard | IEC/EN61009 |
Electrical
features | Type(wave form of the earth leakage sensed) | | Electro-magnetic type, electronic type |
| Rated current In | A | A,AC |
| Poles | P | 2,4 |
| Rated voltage | V | AC 240/415 |
| Rated Current : | | 10,16,20,25,32,40 ,63A |
| Rated sensitivity I△n | A | 0.01,0.03,0.1,0.3,0.5 |
| Insulation voltage Ui | V | 500 |
Rated residual making and
breaking capacity I△m | A | 630 |
| Short-circuit current I△c | A | 6000 |
| SCPD fuse | A |  |
| Rated frequency | Hz | 50/60 |
| Pollution degree | | 2 |
Mechanical
features | Electrical life | t | 4000 |
| Mechanical life | t | 10000 |
| Protection degree | | IP20 |
Ambient temperature
(with daily average ≤35℃) | ℃ | -25~+40 |
| Storage temperature | ℃ | -25~+70 |
| Installation | Terminal connection type | | Cable/U-type busbar/pin-type busbar |
| Terminal size top/bottom for cable | mm2 | 25 |
| AWG | 18-3 |
| Terminal size top/bottom for busbar | mm2 | 25 |
| AWG | 18-3 |
| Tightening torque | N*m | 2.5 |
| In-lbs | 22 |
| Mounting | | On DIN rail EN 60715(35mm)by means of fast clip device |
| Connection | | From top and bottom |
FAQ
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Q 3. tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q 4.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q5. Can i take some samples?
A: Yes, we support to take samples before place the order. Just feel free to contact with us if you have any requirements.
Q6. Are you original Factory?
A: Yes, we have our own factory .
Q7. How can you make sure the quality of the products?
A: We will accord to international quality standards to inspect every item before leaving our factory.
